ARUESAR MOTORS MOBILE ATM
ARUESAR MOTORS
 MOBILE A.T.M & BANK PROMOTION.

Mobile ATM Van/ buses  are used to provide ATM services in rural, & remote areas by Banks to help people get access to money when regular ATM boots are not available . They are also used by banks to display various schemes,  products services of bank for marketing & educating customers, many of our variants also have features like  bank account opening , loan application and various other schemes provided by bank present in them

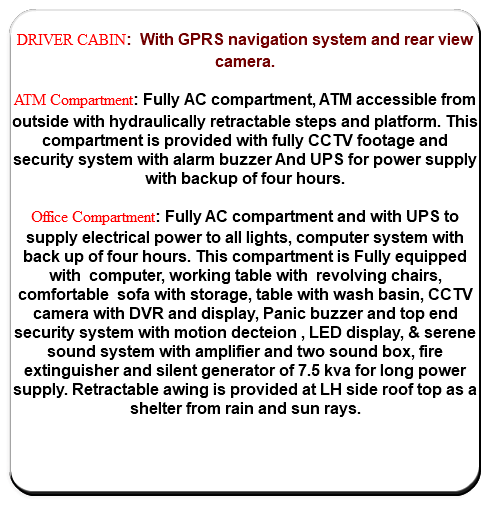

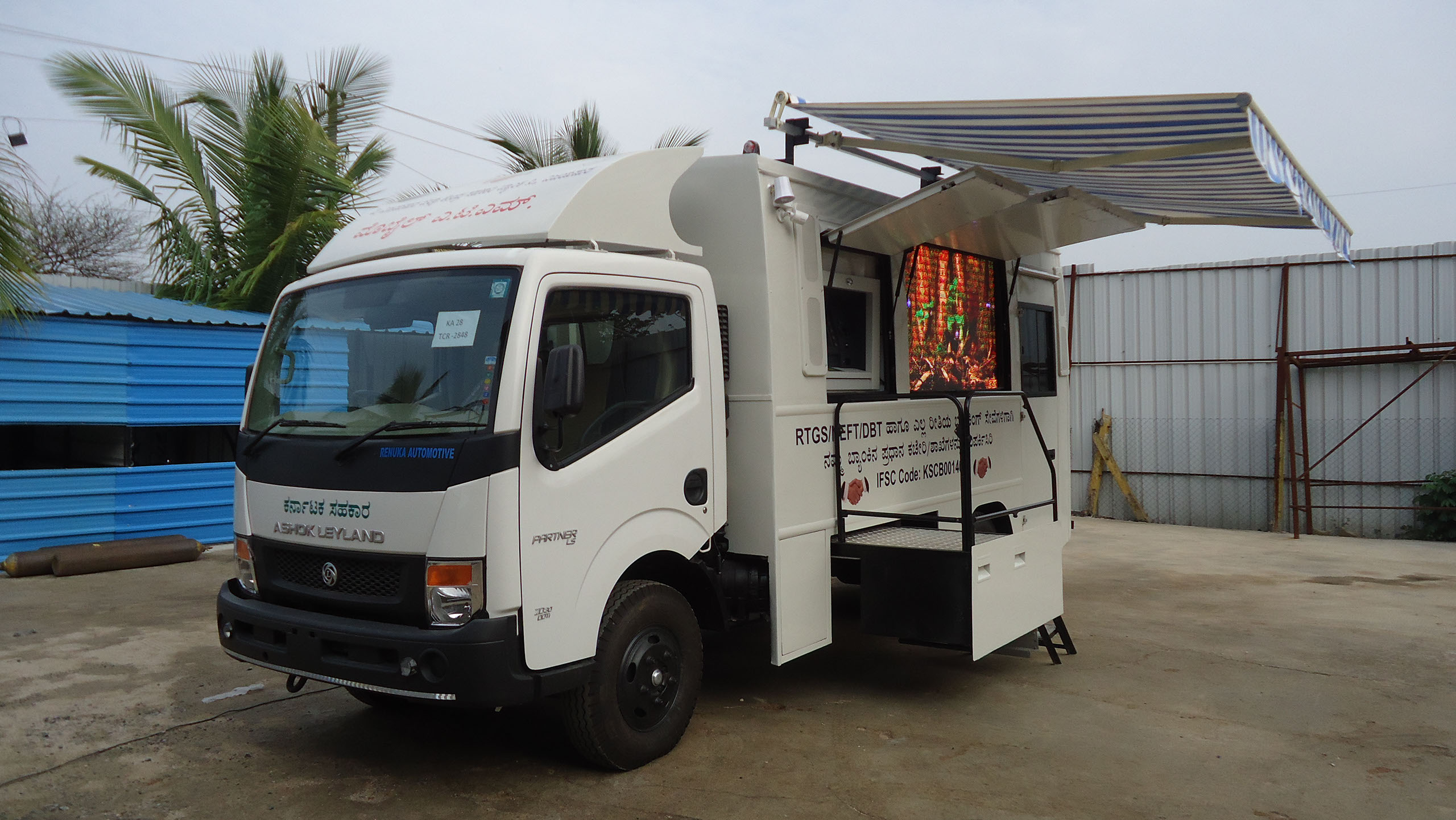

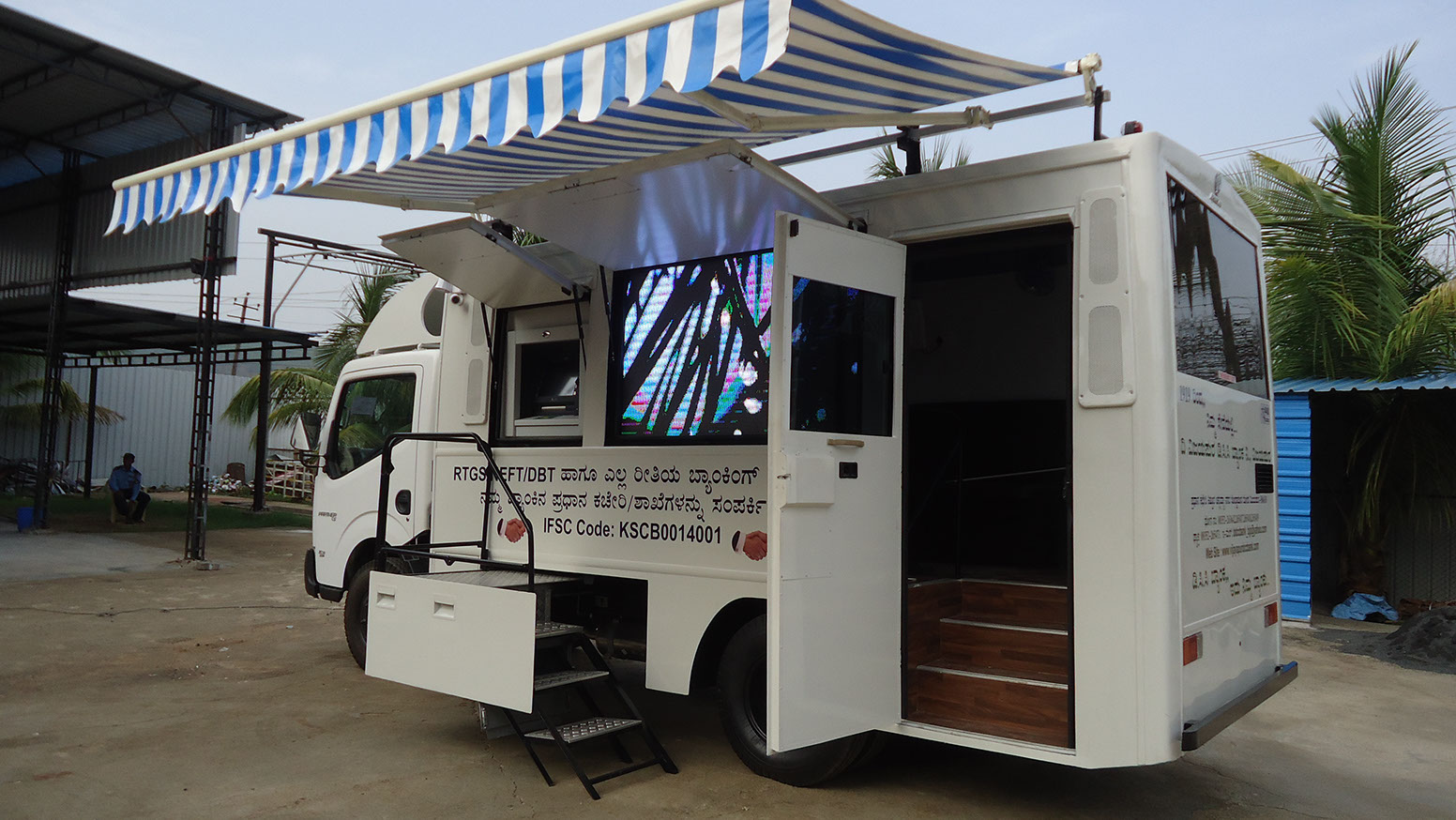

 DRIVER CABIN: With GPRS navigation system and rear view camera. ATM Compartment: Fully AC compartment, ATM accessible from outside with hydraulically retractable steps and platform. This compartment is provided with fully CCTV footage and security system with alarm buzzer And UPS for power supply with backup of four hours. Office Compartment: Fully AC compartment and with UPS to supply electrical power to all lights, computer system with back up of four hours. This compartment is Fully equipped with computer, working table with revolving chairs, comfortable sofa with storage, table with wash basin, CCTV camera with DVR and display, Panic buzzer and top end security system with motion decteion , LED display, & serene sound system with amplifier and two sound box, fire extinguisher and silent generator of 7.5 kva for long power supply. Retractable awing is provided at LH side roof top as a shelter from rain and sun rays.

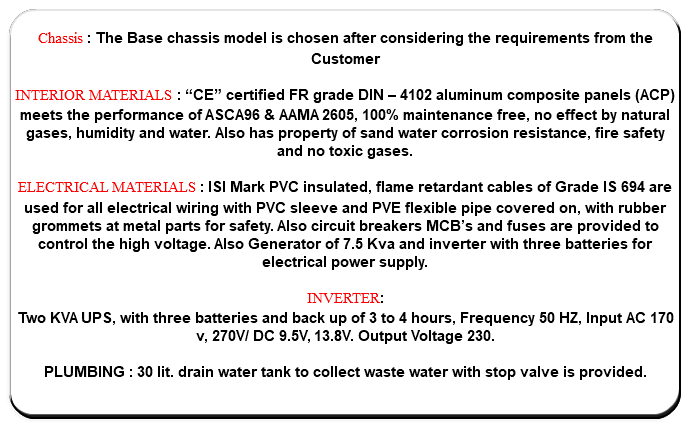

 Chassis : The Base chassis model is chosen after considering the requirements from the Customer INTERIOR MATERIALS : “CE” certified FR grade DIN – 4102 aluminum composite panels (ACP) meets the performance of ASCA96 & AAMA 2605, 100% maintenance free, no effect by natural gases, humidity and water. Also has property of sand water corrosion resistance, fire safety and no toxic gases. ELECTRICAL MATERIALS : ISI Mark PVC insulated, flame retardant cables of Grade IS 694 are used for all electrical wiring with PVC sleeve and PVE flexible pipe covered on, with rubber grommets at metal parts for safety. Also circuit breakers MCB’s and fuses are provided to control the high voltage. Also Generator of 7.5 Kva and inverter with three batteries for electrical power supply. INVERTER: Two KVA UPS, with three batteries and back up of 3 to 4 hours, Frequency 50 HZ, Input AC 170 v, 270V/ DC 9.5V, 13.8V. Output Voltage 230. PLUMBING : 30 lit. drain water tank to collect waste water with stop valve is provided.

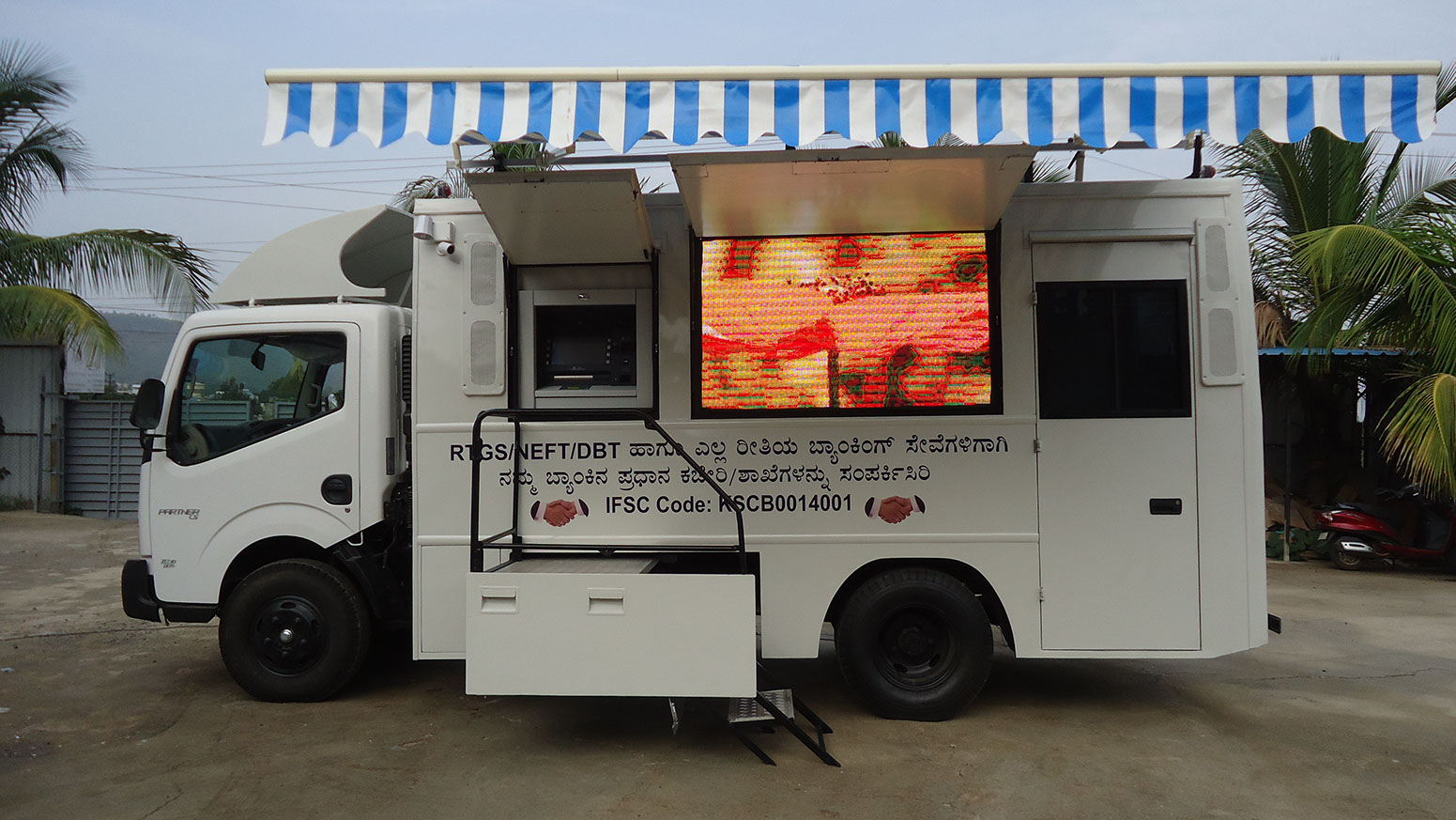

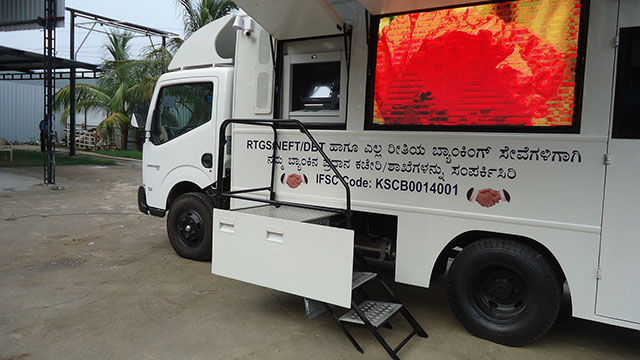

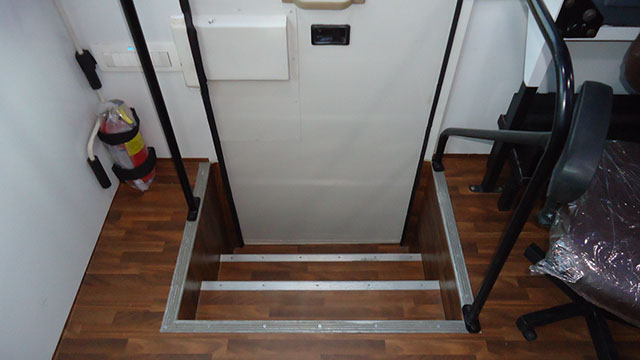

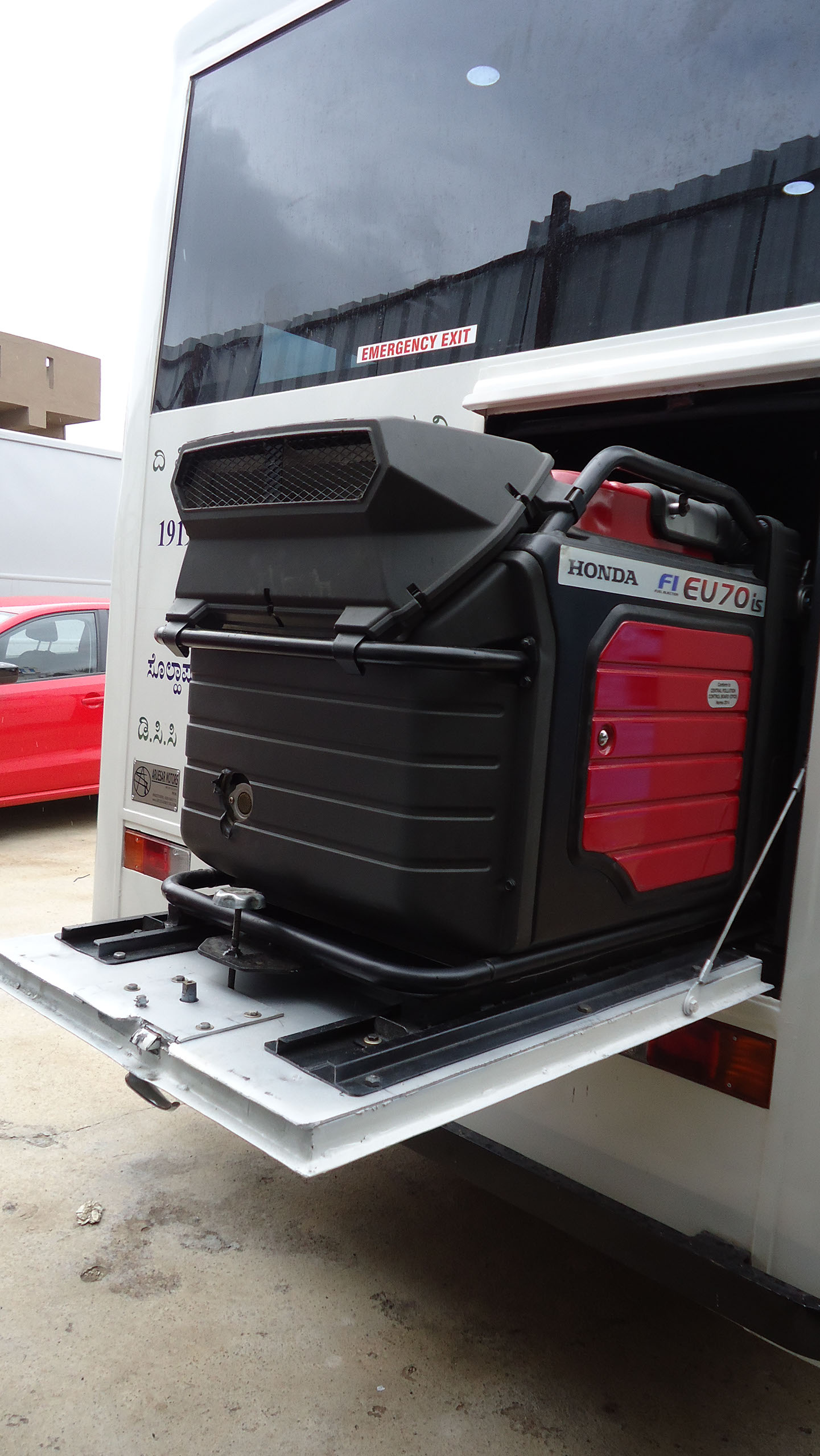

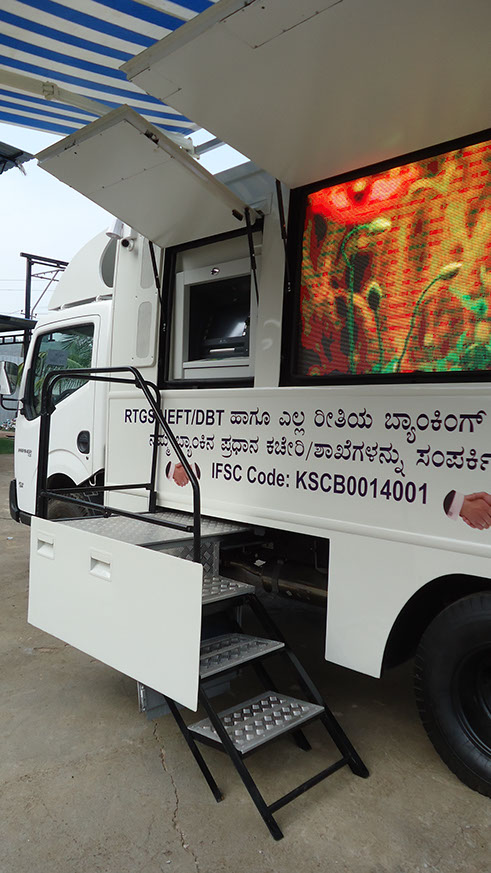

A Large display screen for promotion videos A Slide-out stair platform to access the A.T.M. state of the art security system with motion detection and automatic locking system A Slide-out generator

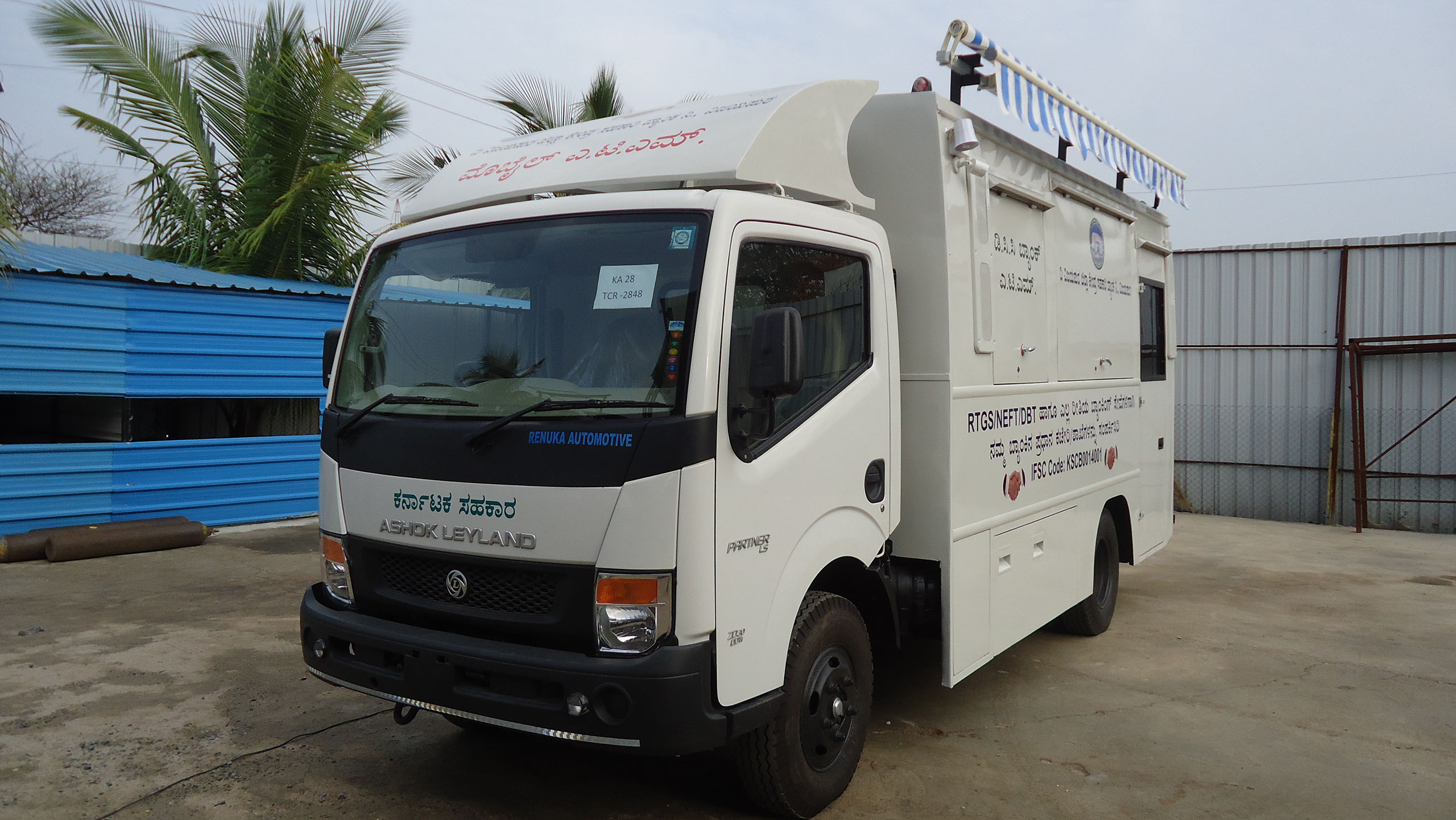

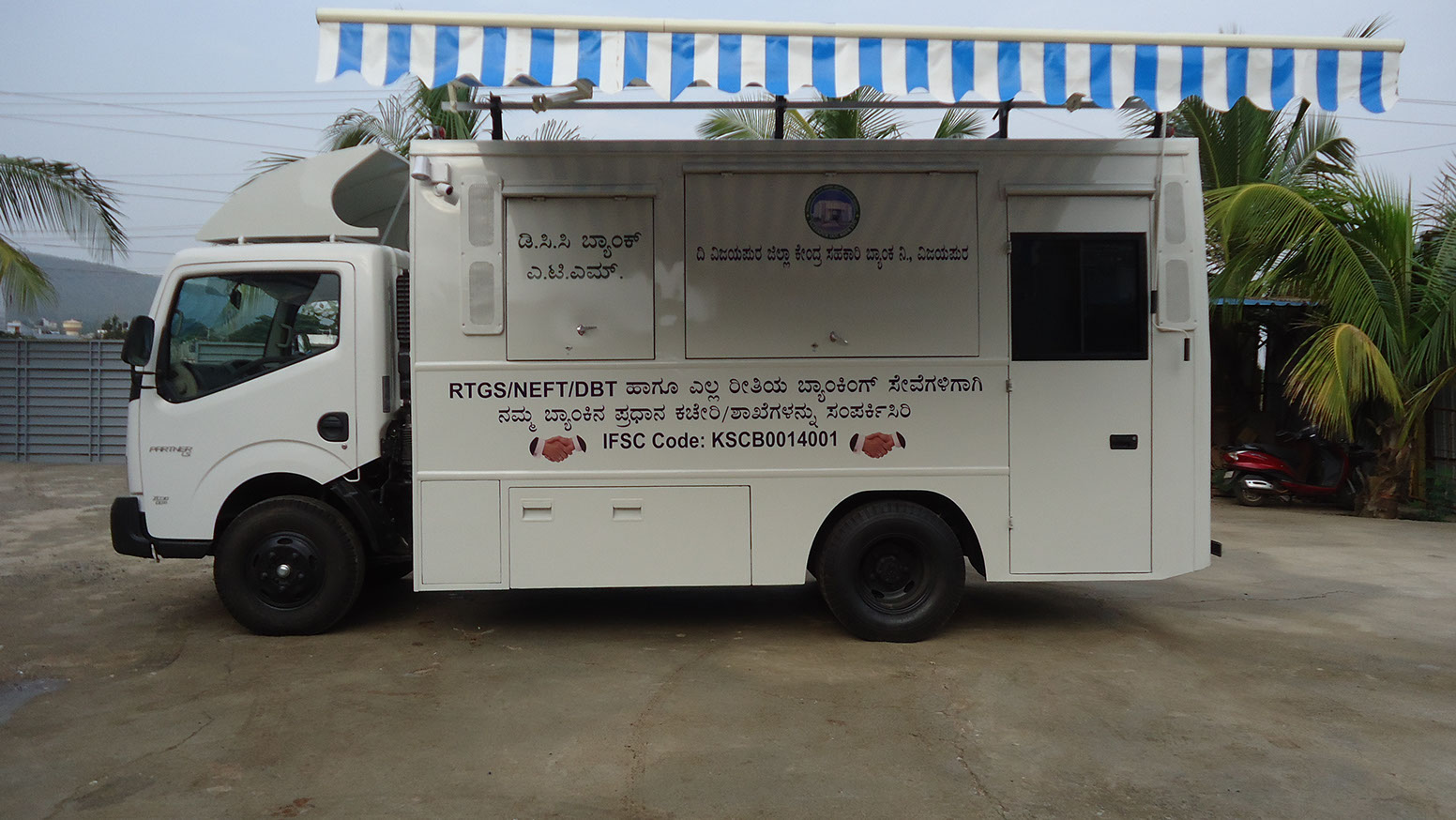

The Above A.T.M VEHICLE Is Built at ARUESAR MOTORS Belgaum S.P.V. [Plant one]. Variant no : AMC A.T.M.V001.

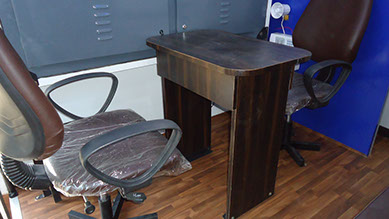

All furniture, seats, Tables Are custom Build By ARUESAR MOTORS, This way customer Can choose any interior furniture design that go with their application.
