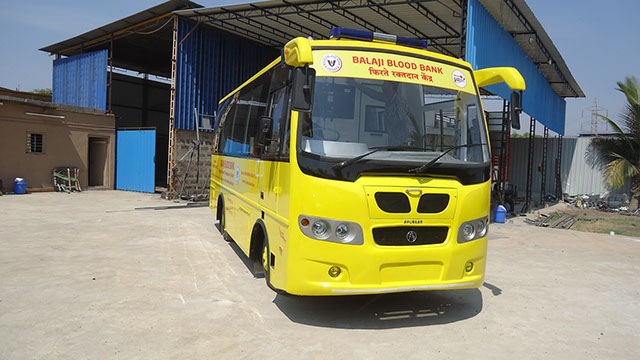

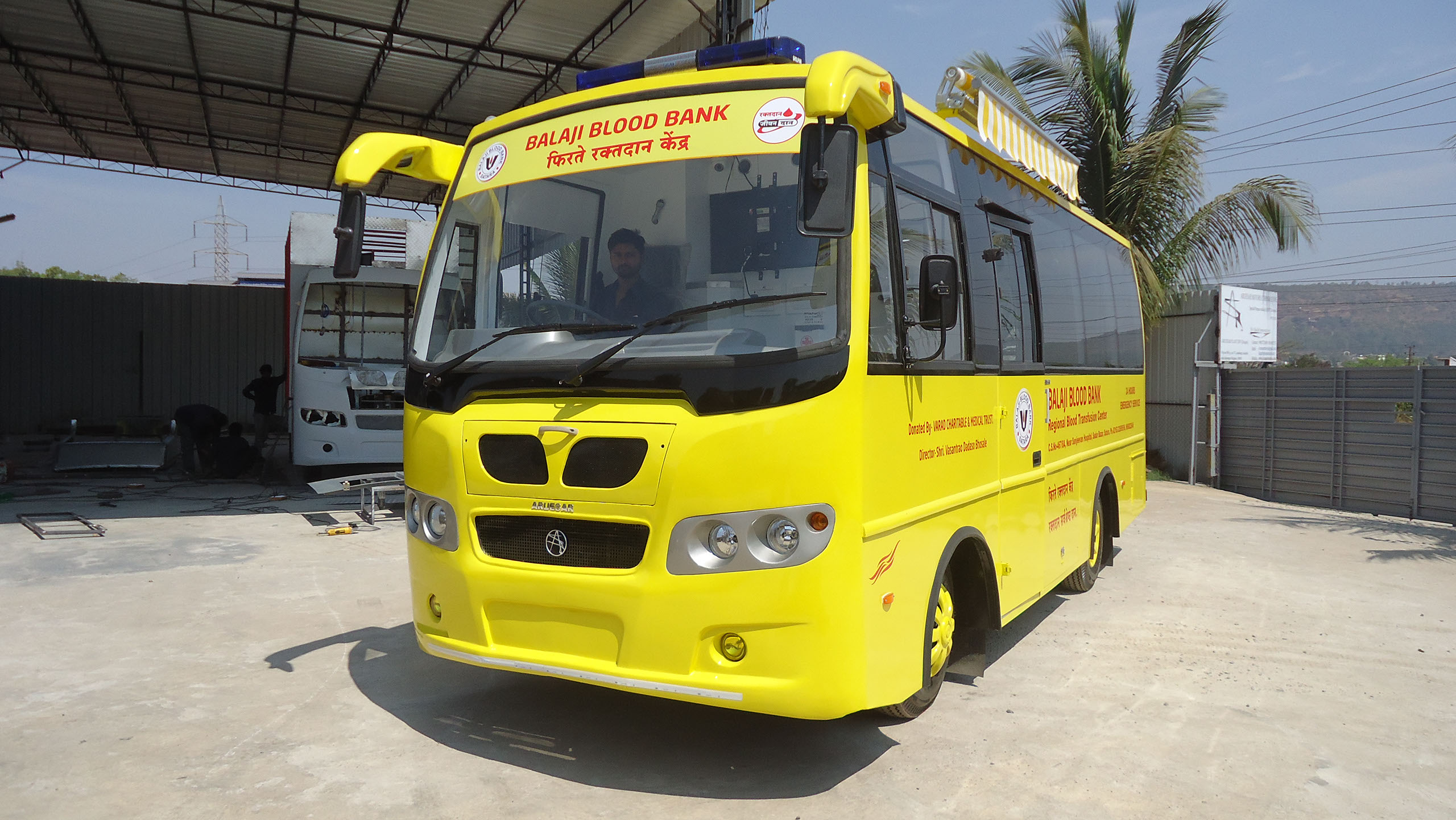

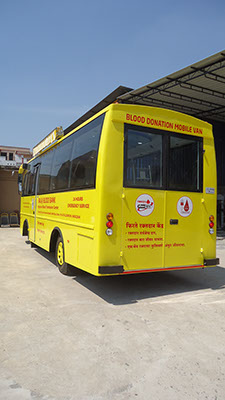

MOBILE BLOOD DONATION & BANKS Mobile Blood Donor & Banks are a range of Mobile buses used to conduct Blood Donation camps in various areas by NGO’s, hospitals and Blood Bank to collect blood and supply to necessary areas where blood is required in scarce situations & emergences. This vehicles are built to have both storage and comfortable receiving blood facility and can travel at any location, which is vital in emergency situation.

Comfortable fully built Diver cabin

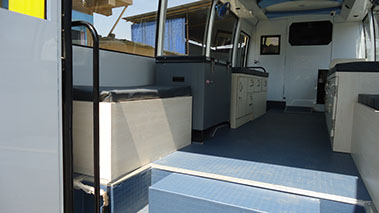

Special Build comfortable blood receving area

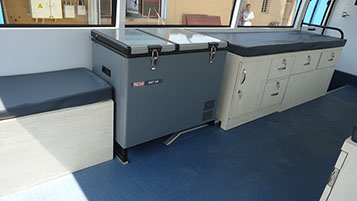

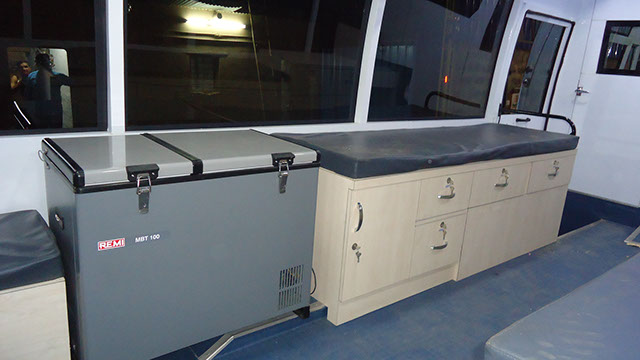

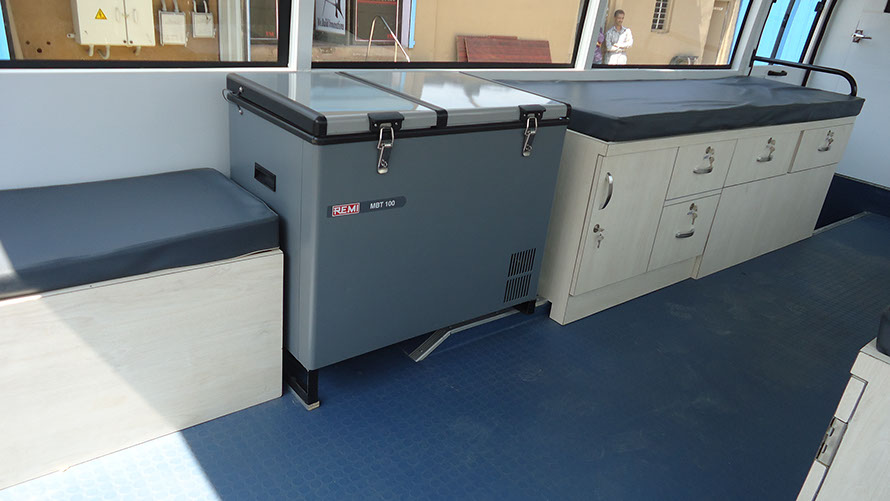

Large medical storage freezers with inveter backup

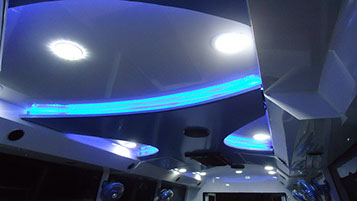

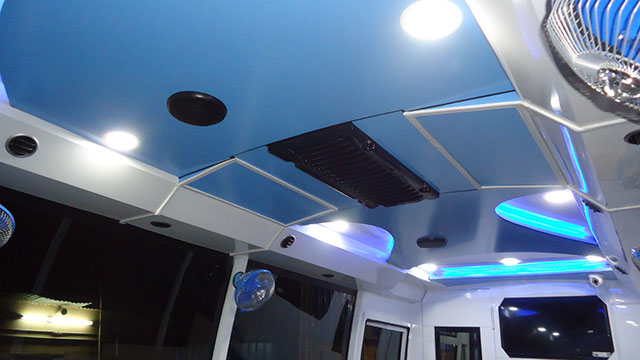

The vechicle can also fuction at night with special night light installed

DRIVER CABIN: Fully AC cabin with GPRS navigation system and CCTV camera.

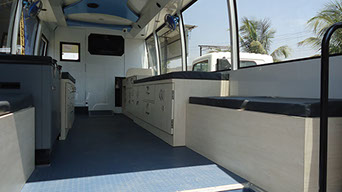

BLOOD DONOR SALOON AREA:

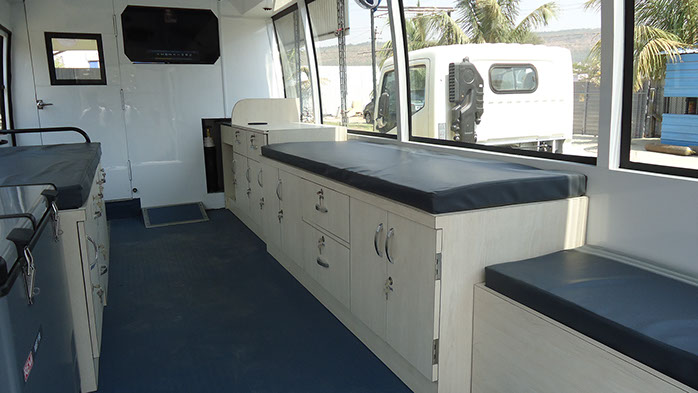

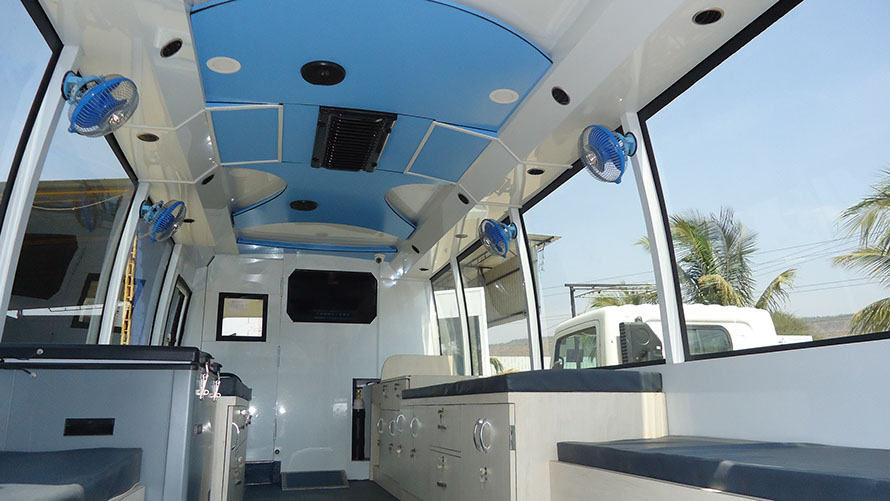

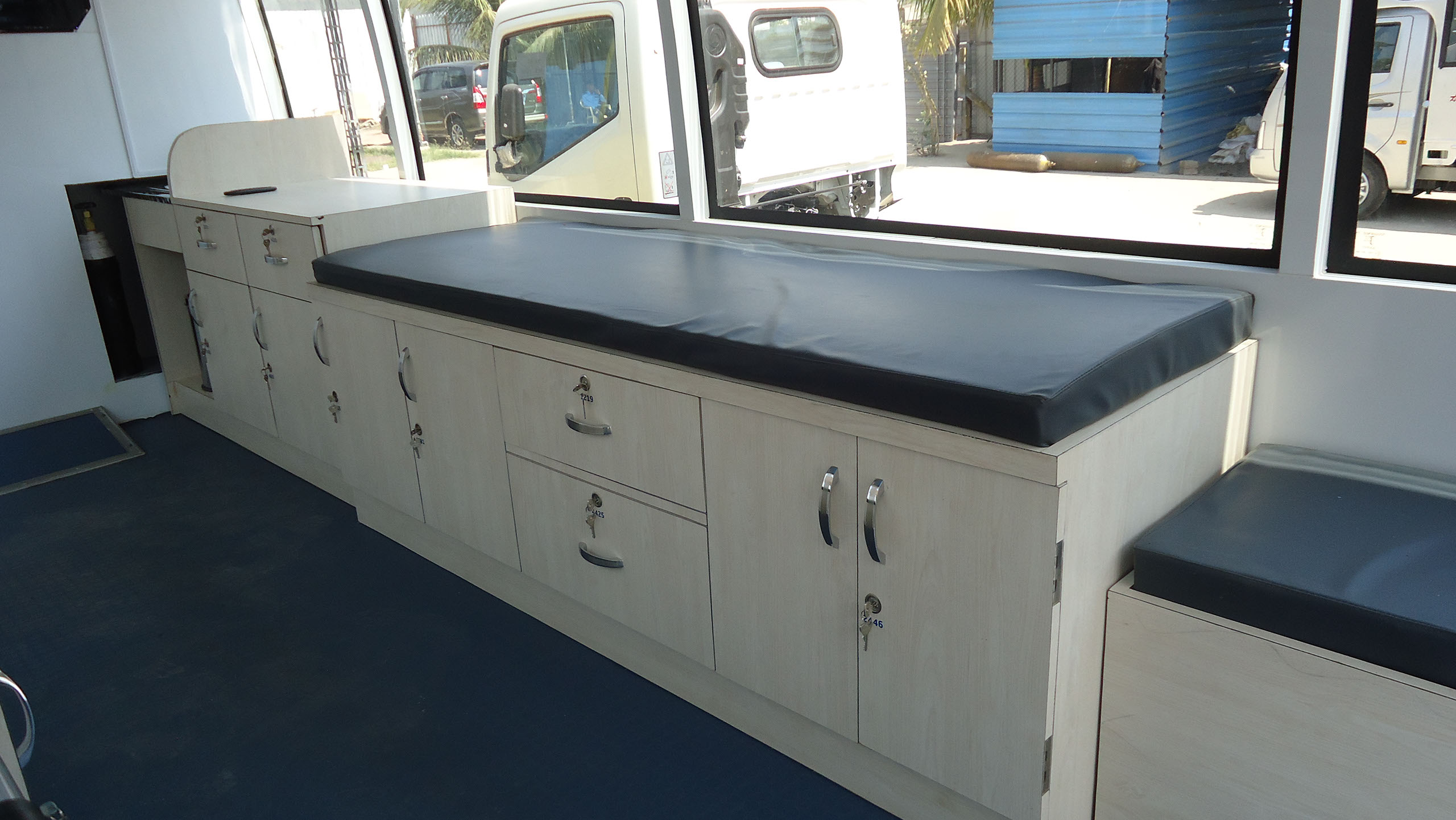

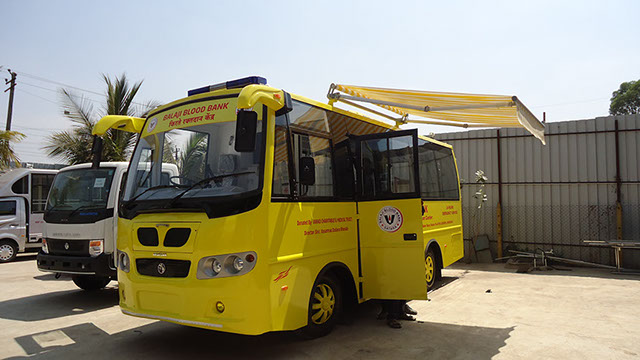

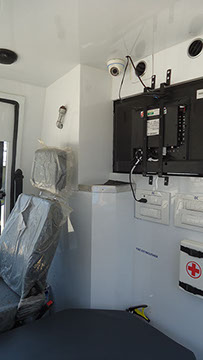

Fully AC compartment Unit driven on vehicle engine and with UPS to supply electrical power to all lights, LED TV display with back up of four hours. The vehicle is equipped with two blood donor areas , two bench type seat with storage, registration table with storage, water tank with wash basin and dust bin, Oxygen cylinder, special medical Refrigerator to store blood packets etc. Retractable awing is provided at LH side roof top as a shelter from rain and sun rays.

ALL The furniture, seats, Tables Are custom Build By ARUESAR MOTORS, This way every customer Has the Choice to select their individual design and choose any upholstery they Wish.

Chassis : The Base chassis model is chosen after considering the requirements from the Customer

INTERIOR MATERIALS : “CE” certified FR grade DIN – 4102 aluminium composite panels (ACP) meets the performance of ASCA96 & AAMA 2605, 100% maintenance free, no effect by natural gases, humidity and water. Also has property of sand water corrosion resistance, fire safety and no toxic gases.

ELECTRICAL MATERIALS : ISI Mark PVC insulated, flame retardant cables of Grade IS 694 are used for all electrical wiring with PVC sleeve and PVE flexible pipe covered on, with rubber grommets at metal parts for safety. Also circuit breakers MCB’s and fuses are provided to control the high voltage. Also sequential Bar light with PA system is provided along with flasher lights nine numbers around the ambulance.

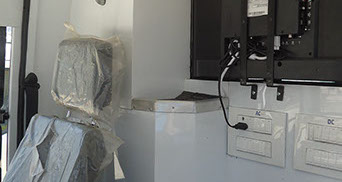

INVERTER:

True sine wave inverter of capacity 1100 VA, Frequency 50 HZ, Input AC 130 v, 270V/ DC 9.5V, 13.8V. Output Voltage 220.

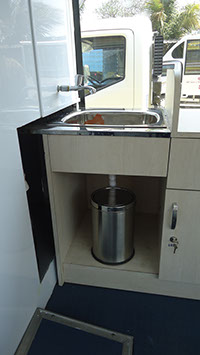

PLUMBING : 100 lit. Fresh water tank and drain water tank of 25 lit. made of SS are provided with foot operated switch.

The Above Coach Is Built at ARUESAR MOTORS Belgaum S.P.V. [Plant one].

Variant no: AMC BM001.
