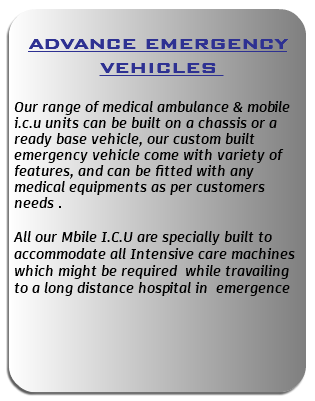

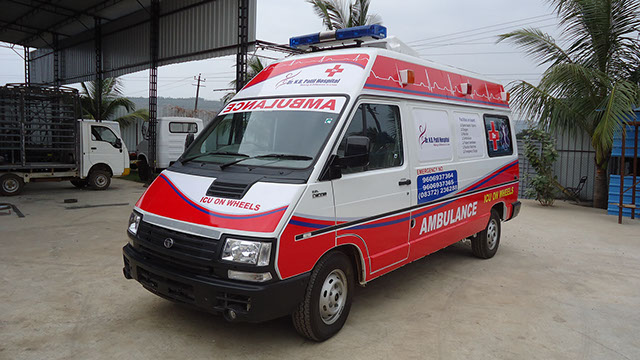

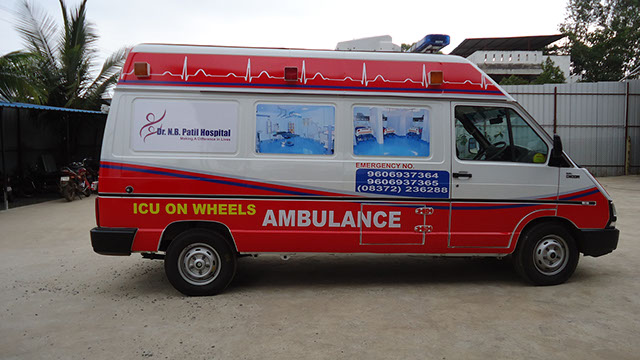

ADVANCE EMERGENCY VEHICLES Our range of medical ambulance & mobile i.c.u units can be built on a chassis or a ready base vehicle, our custom built emergency vehicle come with variety of features, and can be fitted with any medical equipments as per customers needs . All our Mbile I.C.U are specially built to accommodate all Intensive care machines which might be required while travailing to a long distance hospital in emergence

<

>

close

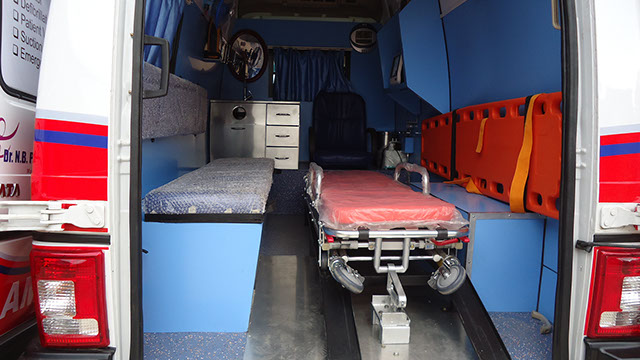

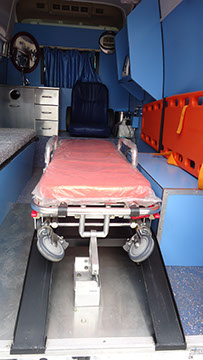

Special Build Collapsible Trolley Stretcher.

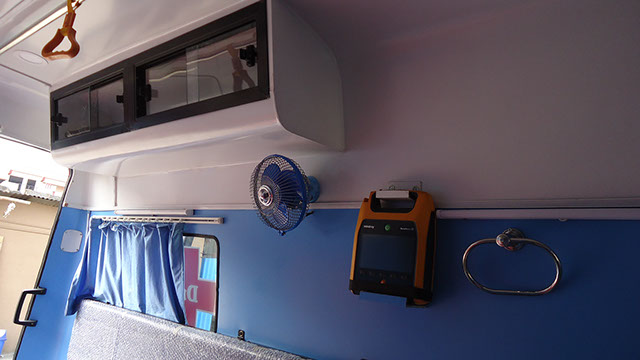

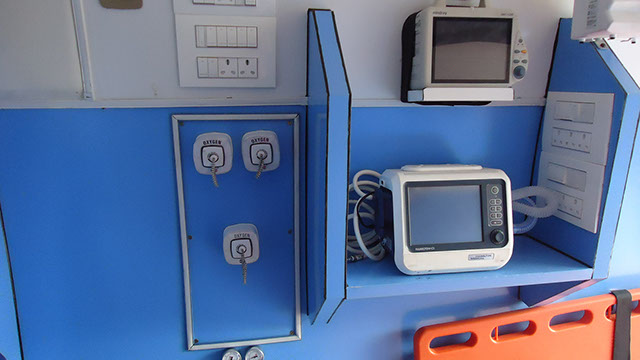

Special Build electric boards for

moniters, Defibrillator etc.

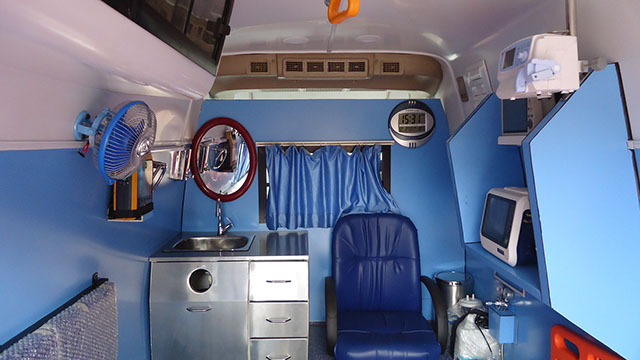

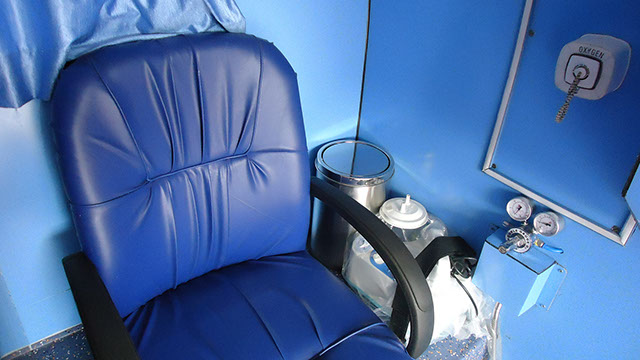

Doctor's seat, With all the vehicles functions at Fingertips.

<

>

CLOSE

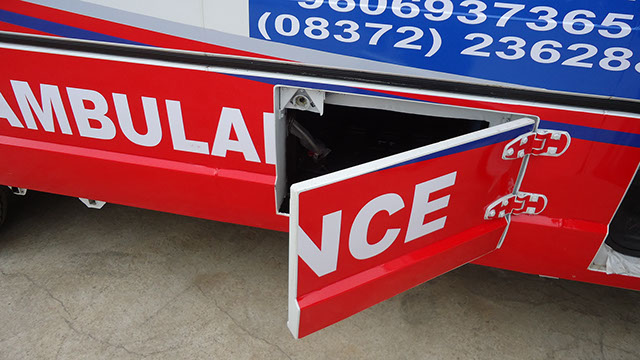

Large area for oxygen cylinder storage.

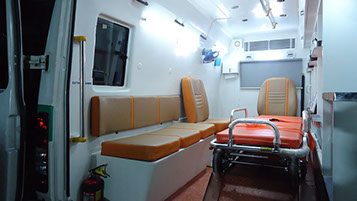

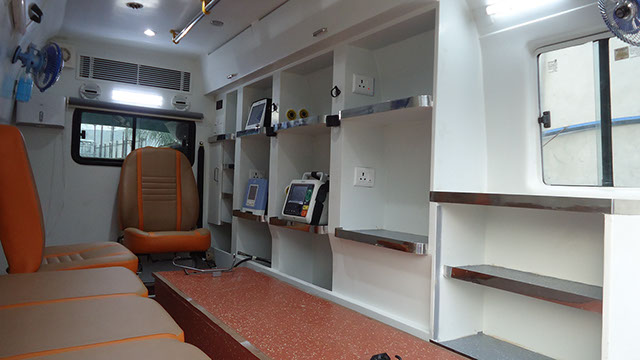

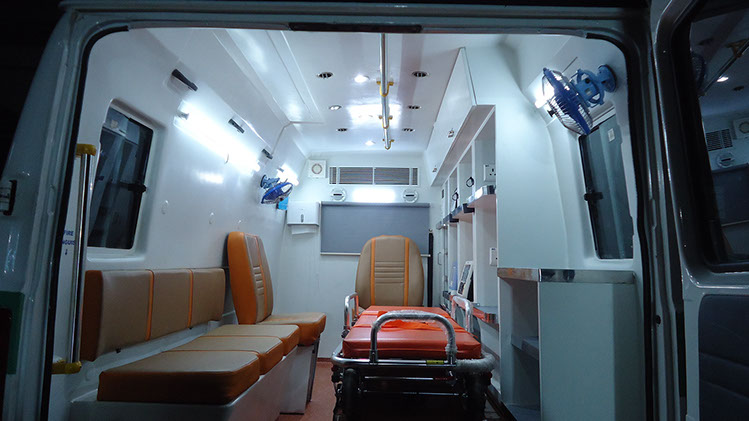

Cabin as good as an hospital I.C.U

1.

2.

3.

<

>

CLOSE

4.

5.

6.

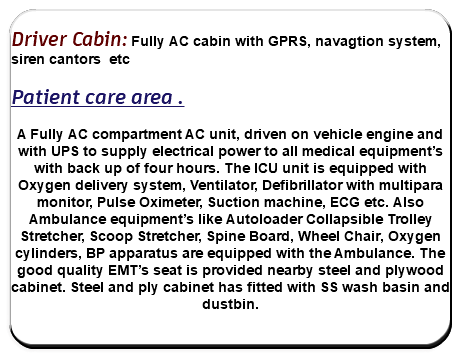

Driver Cabin: Fully AC cabin with GPRS, navagtion system, siren cantors etc Patient care area . A Fully AC compartment AC unit, driven on vehicle engine and with UPS to supply electrical power to all medical equipment’s with back up of four hours. The ICU unit is equipped with Oxygen delivery system, Ventilator, Defibrillator with multipara monitor, Pulse Oximeter, Suction machine, ECG etc. Also Ambulance equipment’s like Autoloader Collapsible Trolley Stretcher, Scoop Stretcher, Spine Board, Wheel Chair, Oxygen cylinders, BP apparatus are equipped with the Ambulance. The good quality EMT’s seat is provided nearby steel and plywood cabinet. Steel and ply cabinet has fitted with SS wash basin and dustbin.

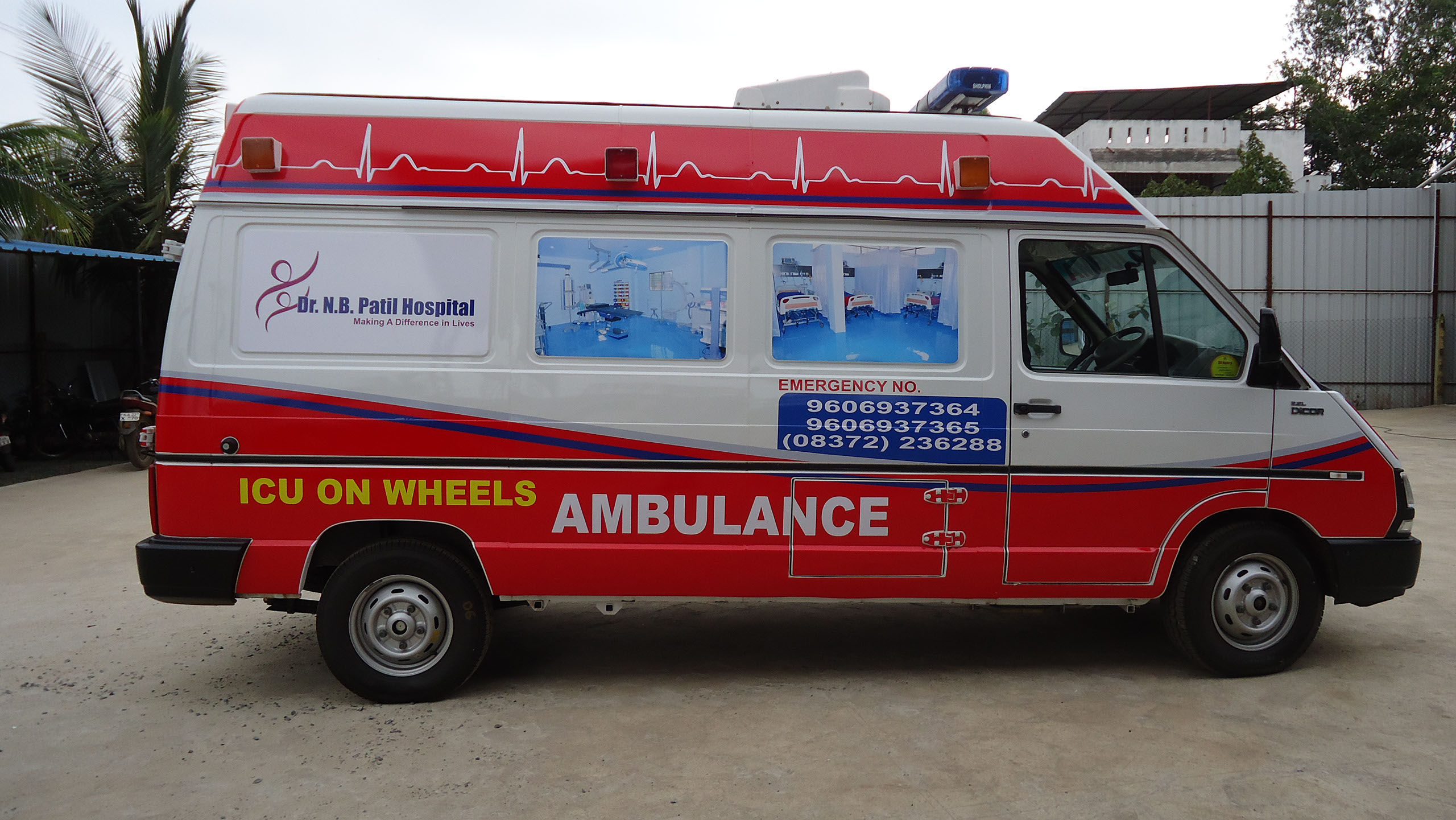

BASE VEHICLE: Tata Winger / Traveller / OR Any Engine Chassis's.

INTERIOR : “CE” certified FR grade DIN – 4102 aluminum composite panels (ACP) meets the performance of ASCA96 & AAMA 2605, 100% maintenance free, no effect by natural gases, humidity and water. Also has property of sand water corrosion resistance, fire safety and no toxic gases.

ELECTRICAL: All ISI Mark PVC insulated, flame retardant cables of Grade IS 694 are used for all electrical wiring with PVC sleeve and PVE flexible pipe covered on, with rubber grommets at metal parts for safety. Also circuit breakers MCB’s and fuses are provided to control the high voltage. Also sequential Bar light with PA system is provided along with flasher lights nine numbers around the ambulance.

POWER SUPPLY : Inverter True sine wave inverter of capacity 900 VA, Frequency 50 HZ, Input AC 130 v, 270V/ DC 9.5V, 13.8V. Output Voltage 220.

PLUMBING: 10 lit. Fresh water tank and drain water tank of 15 lit. made of SS are provided with foot operated switch.

All furniture, seats, Tables Are custom Build By ARUESAR MOTORS, This way every customer Has the Choice to select their individual design and choose any upholstery they Wish.

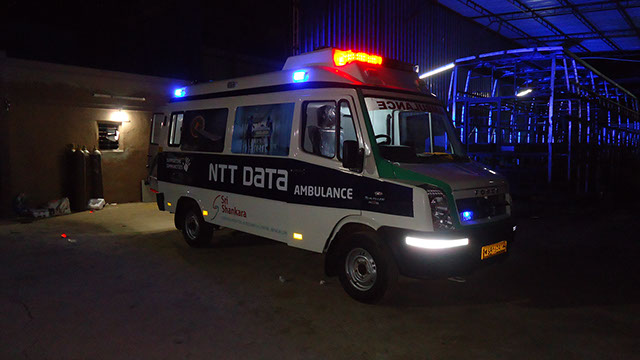

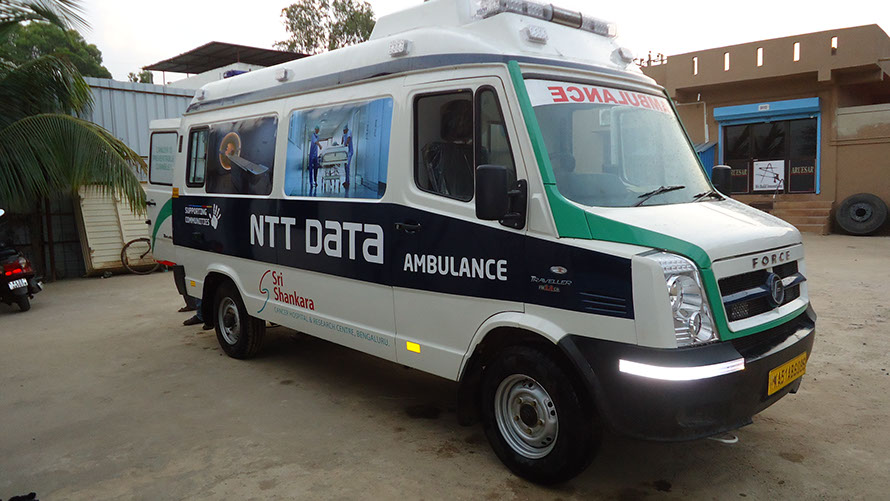

The Above Ambulance Variants

Model : AMC WA001.

Model : AMC FT002
